SMRY3 Inch Series Shaft Mount Reducer for Conveyer Systems

  • 1 - 9 Pieces
    $177.30
  • 10 - 29 Pieces
    $177.10
  • 30 - 49 Pieces
    $164.80
  • >=50 Pieces
    $156.40
Model Number:
SMRY3
Rated Power:
0.25 hp~150 hp
Lead Time:
Quantity(Pieces) 1 - 1 2 - 30 31 - 50 >50
Est. Time(days) 15 20 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Samples:
$178.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Food Shop, Energy & Mining, Food & Beverage Shops
Place of Origin:
Shanghai, China
Brand Name:
Goldgun
Gearing Arrangement:
Helical
Output Torque:
36~7794Nm
Input Speed:
950~1450rpm
Output Speed:
35~100rpm
Ratio:
15 & 25
Structures:
Shaft mounted
color:
blue or grey
Warranty:
12 Months
Input power:
1/4 to 150 HP
Bushing size:
1-7/16 to 4-15/16
Output speed:
4-56 rpm
Input shaft ' diameter:
28-60 mm
Output hub bore ' diameter:
45- 125 mm
Backstop:
BS-1 to BS-9
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Seaworthy Wooden Cases contact at email: info @goldgun.cn whatsapp;+86 17321084276
Port
Shanghai ,Ningbo,E-checking, PaypalShenzhen ,Tianjin ect
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 2 - 30 31 - 50 >50
Est. Time(days) 15 20 25 To be negotiated
Product Description

SMRY Inch Series Shaft Mount Reducer for Conveyer Systems contact at email : info@goldgun.cn wechat/whatsapp:+ 86 17321084276

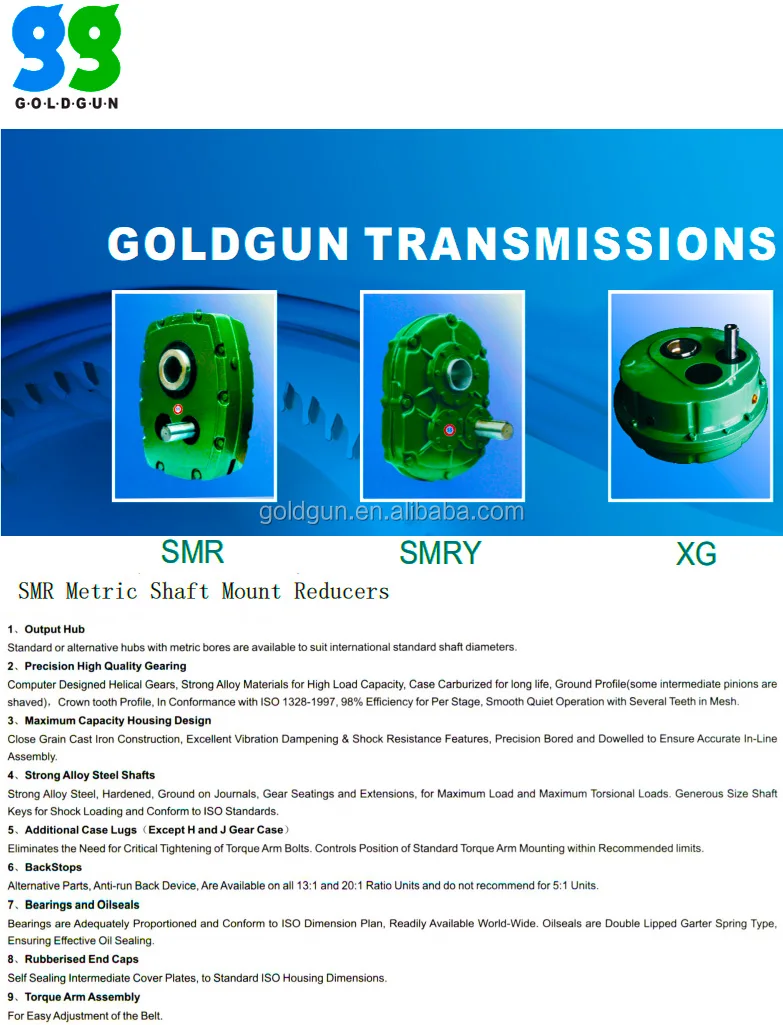

1.Twin Tapered Output Hub A tapered bore in both sides of the reducer's output hub snugs up agianst a matching taper on the outer surface of the bushing. Bushing mounting screws pass through the bushing flange into a mounting collar on the hob, As the screws are tighted, the bushing moves inward, gripping the driven machine's input shaft tightly and evenly around every point on its circumference, It's is easy-on, easy-off. All the output bashing bore accord to ANSI standards. Also have ISO standard straight output hub. 2. Precision High Quality Gearing Computer Desighed, Helical Gears, strong Alloy Meterials for High load capacity, case carburized for long life, groud profile, crown tooth profile, in conformance with ISO 1328-1977, 98 % Efficiency for per stage, smooth quiet operation with sveral teeth in mesh. 3.Maximum Capacity Housing Desi Close Grain cast iron construstion, Excellent vibration Dampening & Shock Resistence features, precision bored and dowelled to ensure accurate in-line assembly. 4. Strong Alloy Steel Shafts Strong alloy steel, Hardened, groud on Journals, gear seatings and extensions, for Maxumum load and maximum loads, generous size shaft standard torque arm mounting within recommended limites.
Specification
Size
SMRY 2-9
Ratio
15 &  25
Input power
1/4  to 125 hp
Bushing size
1-1/18  to  4-15/16

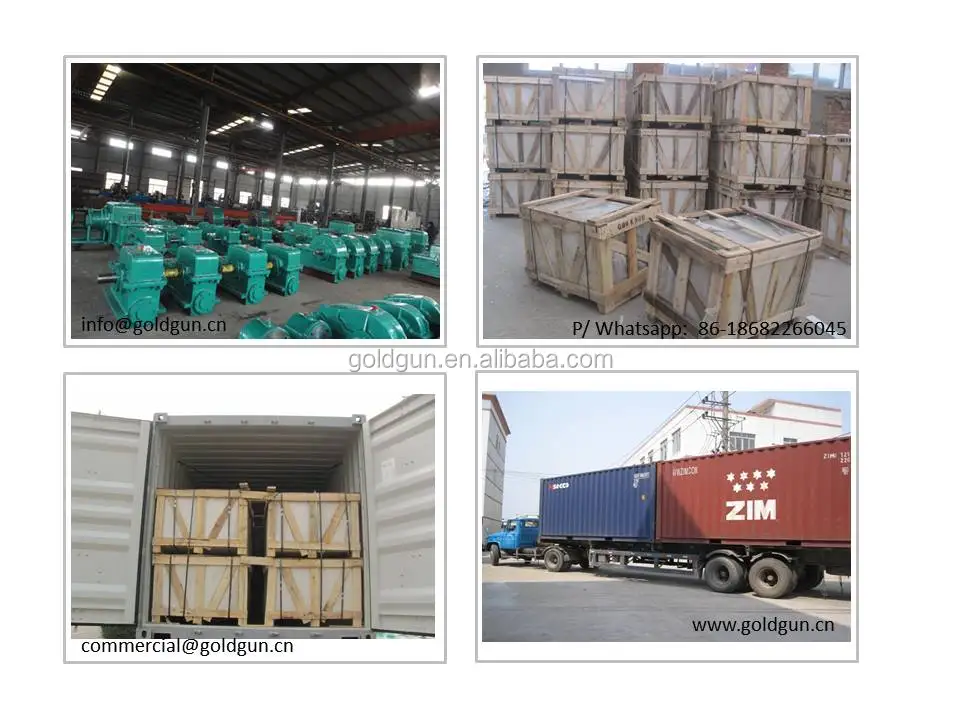

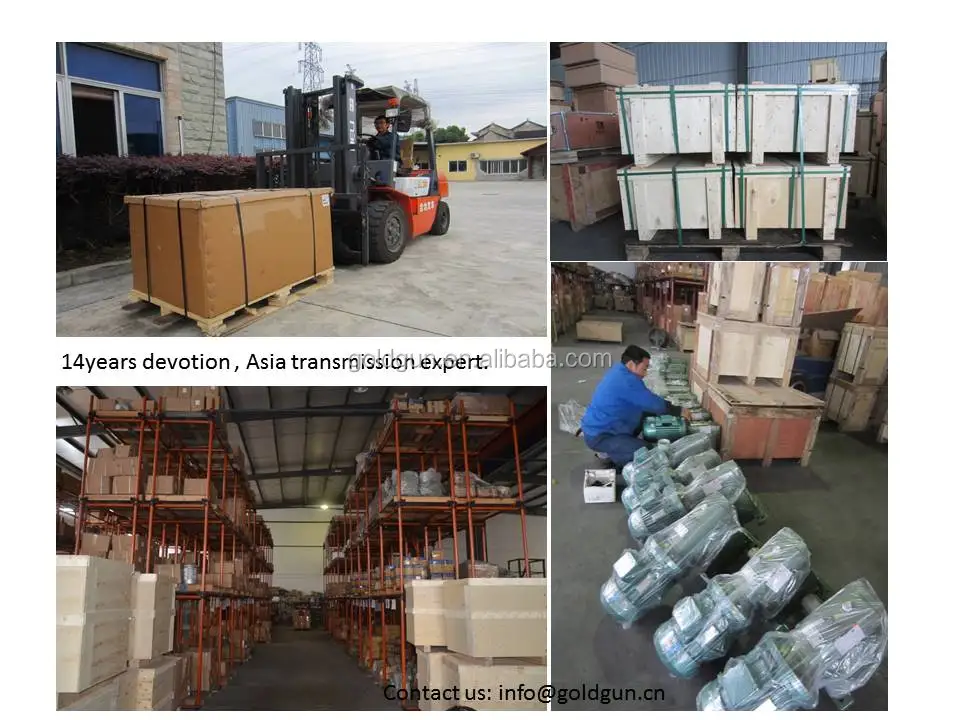

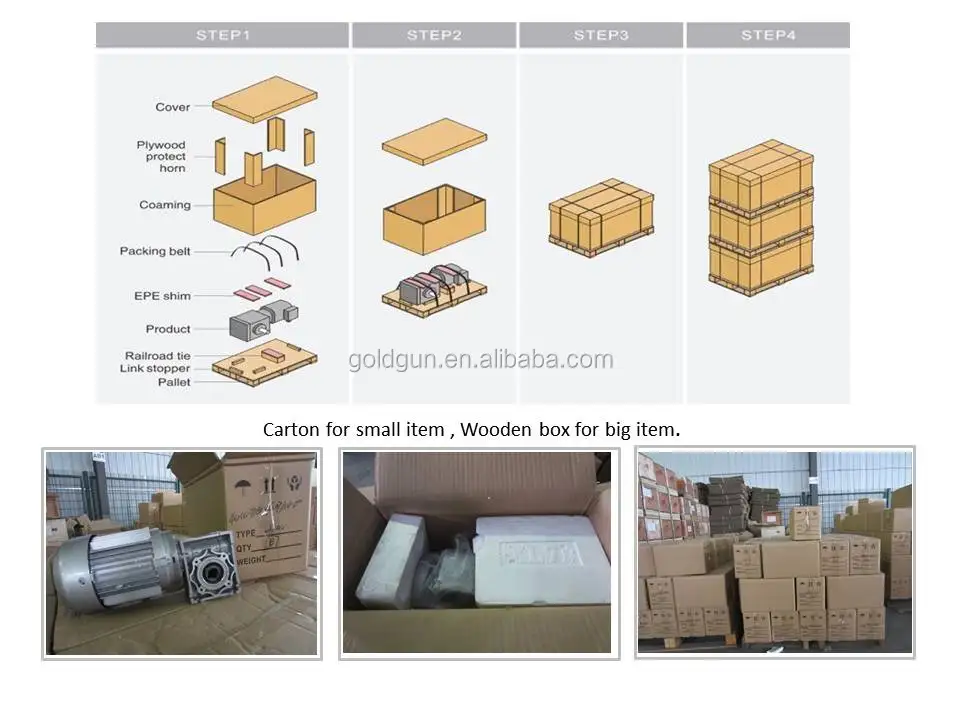

Packing & Delivery
my email: info@goldgun.cn whatsapp/wechat:+86 17321084276
Company Profie
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

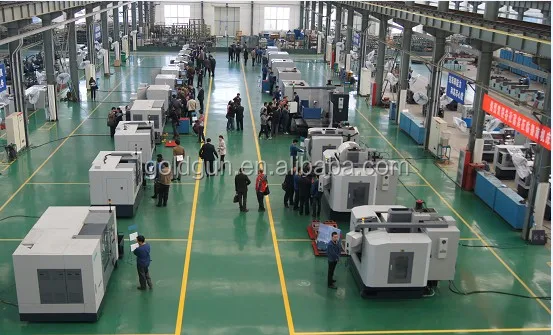

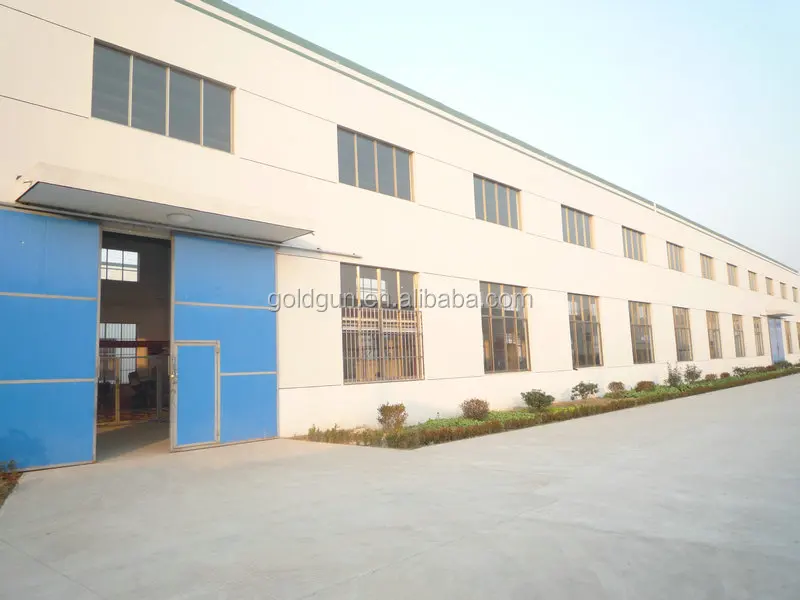

Our factory

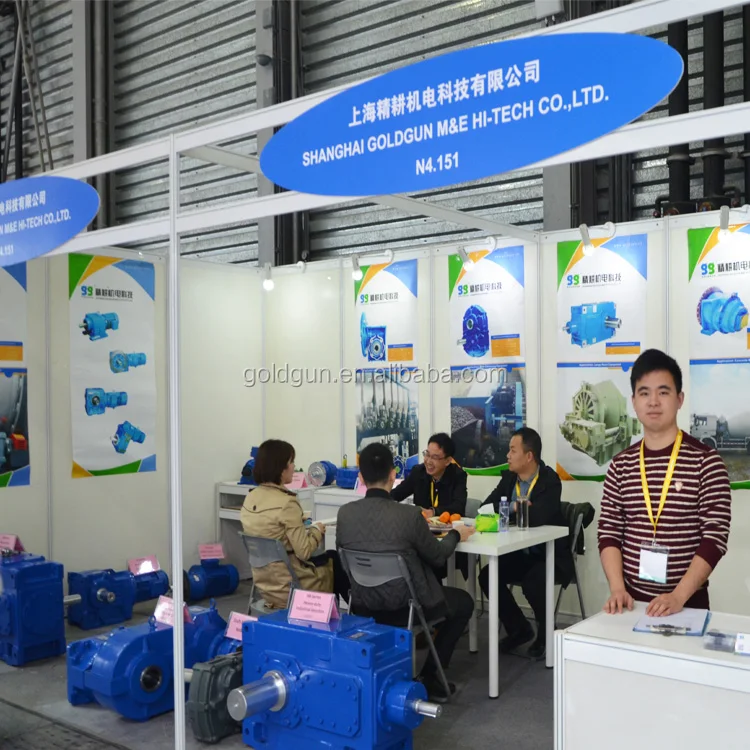

Exhibition
FAQ
Q1: Are you a manufacturer or trading company? A1: A company integrated with industry and trade. Q2: What about the shipping methods? A2: For urgent order and light weight, you can choose the following express: UPS, FedEx, TNT,DHL, EMS. For heavy weight, you can choose to deliver the goods by air or by sea to save cost. Q3: What about the payment methods? A3: We accept T/T, L/C for big amount, and for small amount, you can pay us by PayPal, Western Union, and etc. Q4: How much does it cost to ship to my country? A4: It depends on seasons. Fee is different in different seasons. You can consult us at all times. Q5: What’s your delivery time? A5: Usually we produce within 15-30 days after the payment confirmed. If you are urgent, we will urge the production department for you.
