Shanghai Goldgun H/B Type Helical Mining Gear Speed Reducer

  • >=2 Sets
    $199.99
Rated Power:
66kw
Model Number:
H/B Type
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$2,350.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Food Shop, Energy & Mining
Gearing Arrangement:
Helical
Output Torque:
720N.m
Input Speed:
750-1500r/min
Output Speed:
21-238r/min
Place of Origin:
Shanghai, China
Brand Name:
Goldgun
Mounting Position:
horizontal/vertical
design:
more size with a reduced variety of parts
Packaging & Delivery
Packaging Details
wooden cases
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
  1. Manufacture:Goldgun
  2. Toothed Portion Shape: Bevel Wheel
  3. Type: Bevel Gear
  4. Series: H/B
  5. Input Speed: Acc. to Your Factor      Rated Power: 4-5000kw
  6. Output Speed: 1.7~1200rpm
  7. Transmission Ratio: 1.25-450(Imax:138000)
  8. Mounting: H/M/V
  9. Size: 3~26
  10. Certification: ISO9001-2008
  11. Brand: Goldgun
  12. Export Markets: Global
  13. Production description
  14. Features:
    1. Generally accepted design of H. B Series Gear Units, transformable to industry-specific Gear units according to customer's requirement
    2. Parallel shafts, right-angled shafts, horizontal or vertical mounting modes, reduced Components and increased models.
    3. Sound-absorbable structure, lager surface area and bigger fan; Advanced grinding Process of cylindrical and bevel gears, resulting in limited temperature rise, low noise, Improved stability and larger transmission power.
    4. Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, Torque-arm-mounted.
    5. Input mode: Motor connection flange or input shaft
    6. Output mode: Solid shaft with parallel key, hollow shaft with parallel key, hollow shaft With shrink disk, hollow or solid shaft with involute splines, solid shaft with flange.
    7. Obtaining larger ratio combined with R, K and S series

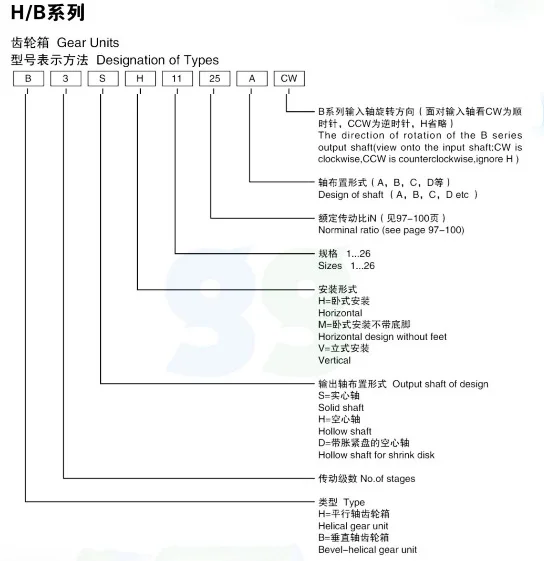

           TypeStageSizeRatioNominal  Power
    (KW)
    Norminal Torque
    (kN.m)
               Output Shaft       Mounting
    Helical Gear Units
    H Type
    Single Stage3-191.25-5.634-3,9202.3-245S: Solid Shaft
    H: Hollow Shaft
    D: Hollow shaft for shrink disk
    K: Hollow Shaft with involute splines, acc. to DIN5480
    F: Flanged shaft
    V: Shaft d2 reinforced (on request)
    H: Horizontal
    M: Horizontal design without feet
    V: vertical
    Double Stage4-266.3-2823-3,6866.3-880
    Three Stage5-2622.4-11210-3,61811.6-900
    Four Stage7-26100-4505-1,01019.6-900
    Bevel-Helical Gear Units
    B Type
    Double Stage4-185-1446-3,8876.1-230
    Three Stage4-2612.5-908-36185.5-900
    Four Stage5-2680-4003-1,25911.2-900
